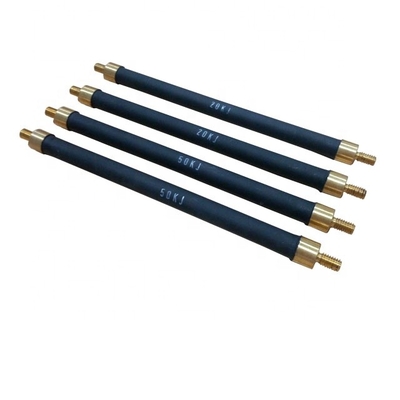

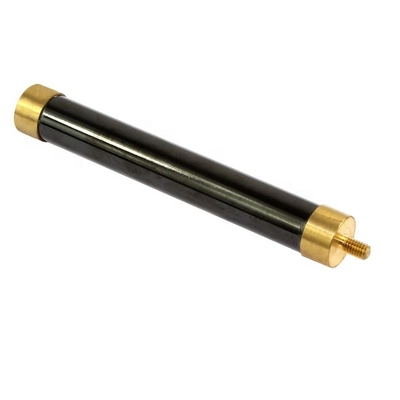

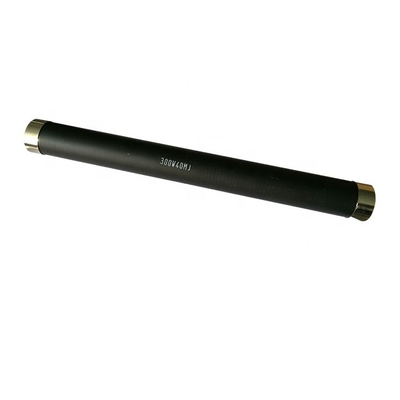

Thick Film DC 10KV DC 80KV High Voltage Resistor With Low TC

Thick Film DC 10KV DC 80KV High Voltage Resistor With Low TC

High Voltage Non-Inductive Thick Film Resistor with low TC

Power: 1W 2W 3W 5W 8W 10W 20W 30W 50W 80W 100W 150W 200W 300W 400W

Resistance Tolerance: 0.1% 0.2% 0.5% 1% 2% 5% 10%

1.The type RI80 precision high voltage resistors were specifically designed for general purpose high voltage systems in industrial.
2. Max Working Voltage from 10KV to 100KV; High Resistance Range from 1 Kohm to 1KK Megohms.

3. Stable performance,extensive resistance,small size,high operating temperature and high ultimate voltage.

    Highly adaptive pulse load ,good high frequency performance.

4.Multi connection form will be easily to fix.

 1.Main Products

2.Factory photos:
